Fire Sprinkler Collection
Ten precision-engineered solid brass sprinklers, each UL Listed and FM Approved for reliable fire suppression across all occupancy types.
FE0001

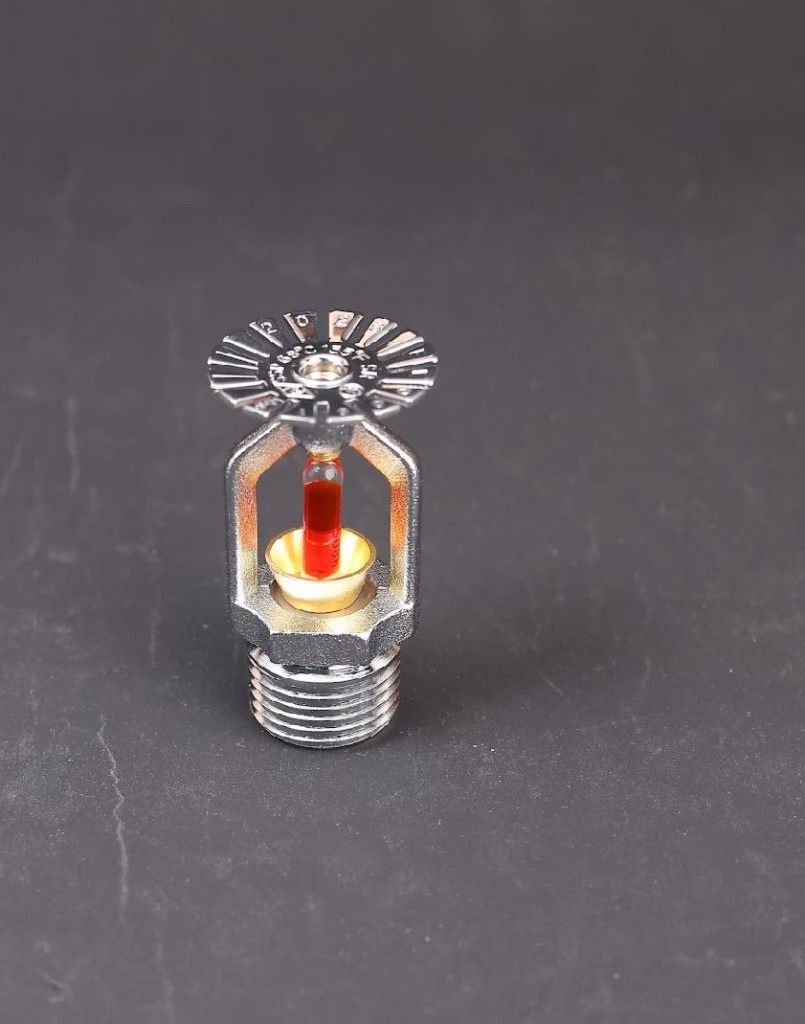

Pendent Standard Response Sprinkler
Installs facing downward from the branch line, the most common configuration for finished ceilings (paired with an escutcheon).
K-Factor
5.6
Pressure
0.5-12 bar
Temps
4 ratings
FE0002
Pendent Quick Response Sprinkler
Downward-facing, fast-response head for finished ceilings in light hazard spaces.
K-Factor
5.6
Pressure
0.5-12 bar
Temps
4 ratings
FE0003

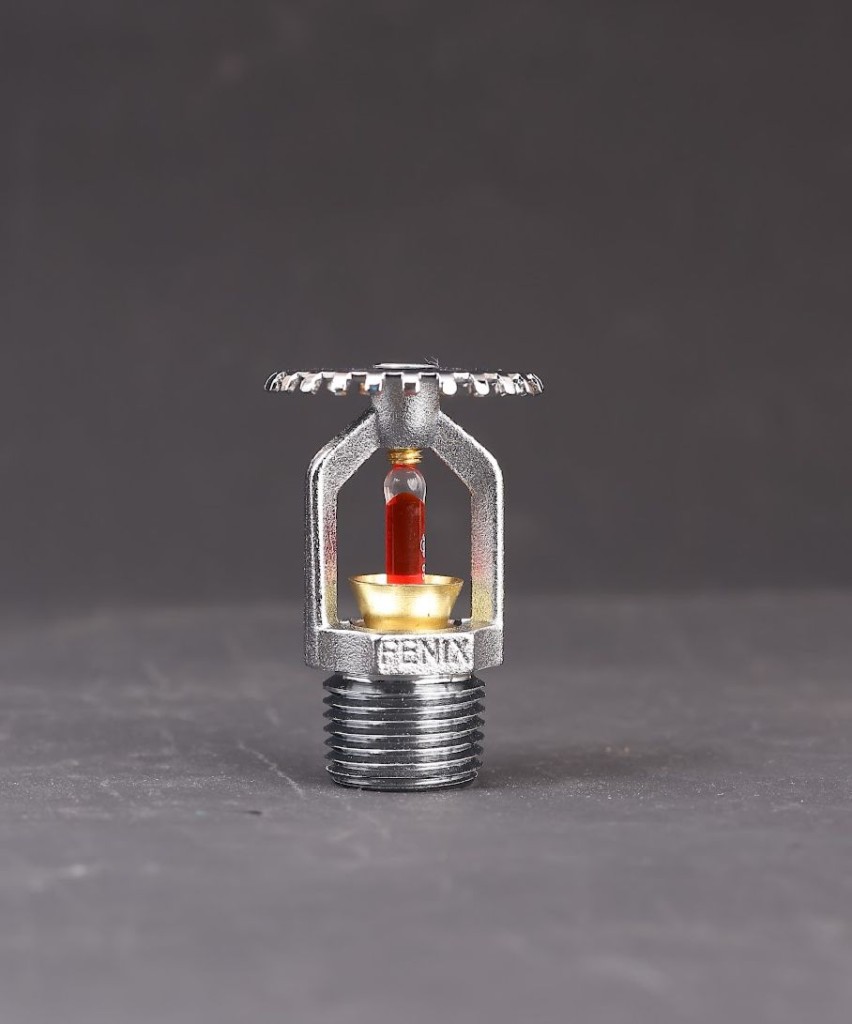

Upright Standard Response Sprinkler
Installs facing upward, sitting above the branch line. Ideal for exposed-pipe areas, mechanical rooms, and warehouses.
K-Factor
5.6
Pressure
0.5-12 bar
Temps
4 ratings
FE0004
Upright Quick Response Sprinkler
Upward-facing, fast-response head for exposed areas in light-hazard occupancies.
K-Factor
5.6
Pressure
0.5-12 bar
Temps
4 ratings
FE0005

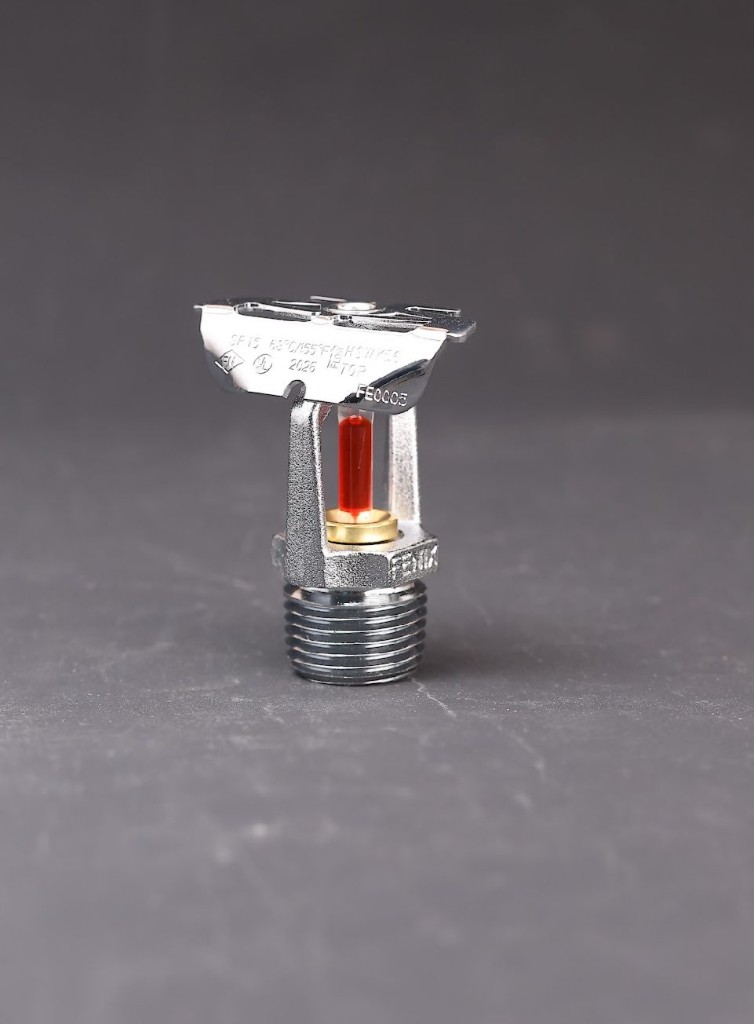

Horizontal Sidewall Standard Response Sprinkler
Mounts on a wall and projects spray horizontally. Used where overhead piping is impractical (corridors, small rooms).
K-Factor
5.6
Pressure
0.5-12 bar
Temps
4 ratings
FE0006
Horizontal Sidewall Quick Response Sprinkler
Mounts on a wall and projects spray horizontally. Used where overhead piping is impractical (corridors, small rooms).
K-Factor
5.6
Pressure
0.5-12 bar
Temps
4 ratings
FE0009

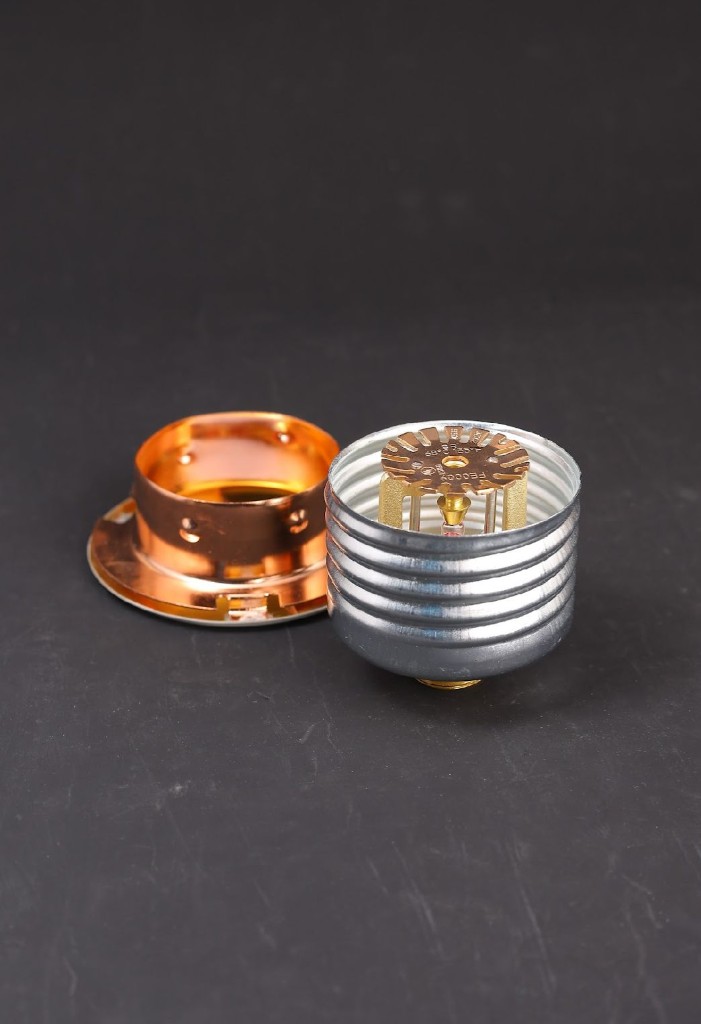

Concealed Pendent Sprinkler
Concealed pendent sprinkler used with a one-piece escutcheon cover plate to give a finished ceiling appearance.
K-Factor
5.6
Pressure
0.5-12 bar
Temps
4 ratings
FE0011
Pendent Standard Response Sprinkler (K8)
Higher K-factor (K8) pendent sprinkler for applications requiring greater flow.
K-Factor
8
Pressure
0.5-12 bar
Temps
4 ratings
FE0012
Upright Standard Response Sprinkler (K8)
Higher K-factor (K8) upright sprinkler for applications requiring greater flow.
K-Factor
8
Pressure
0.5-12 bar
Temps
4 ratings
